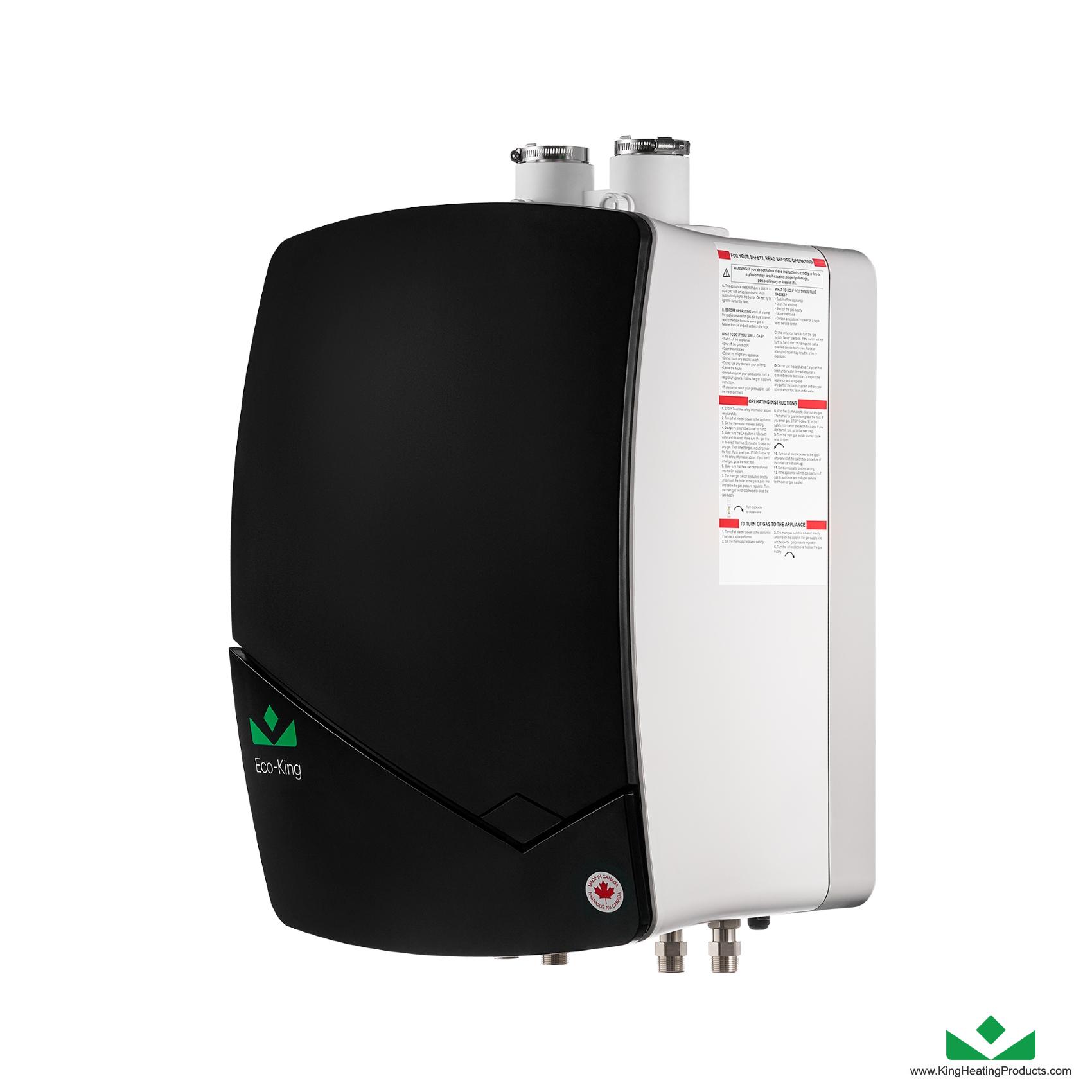

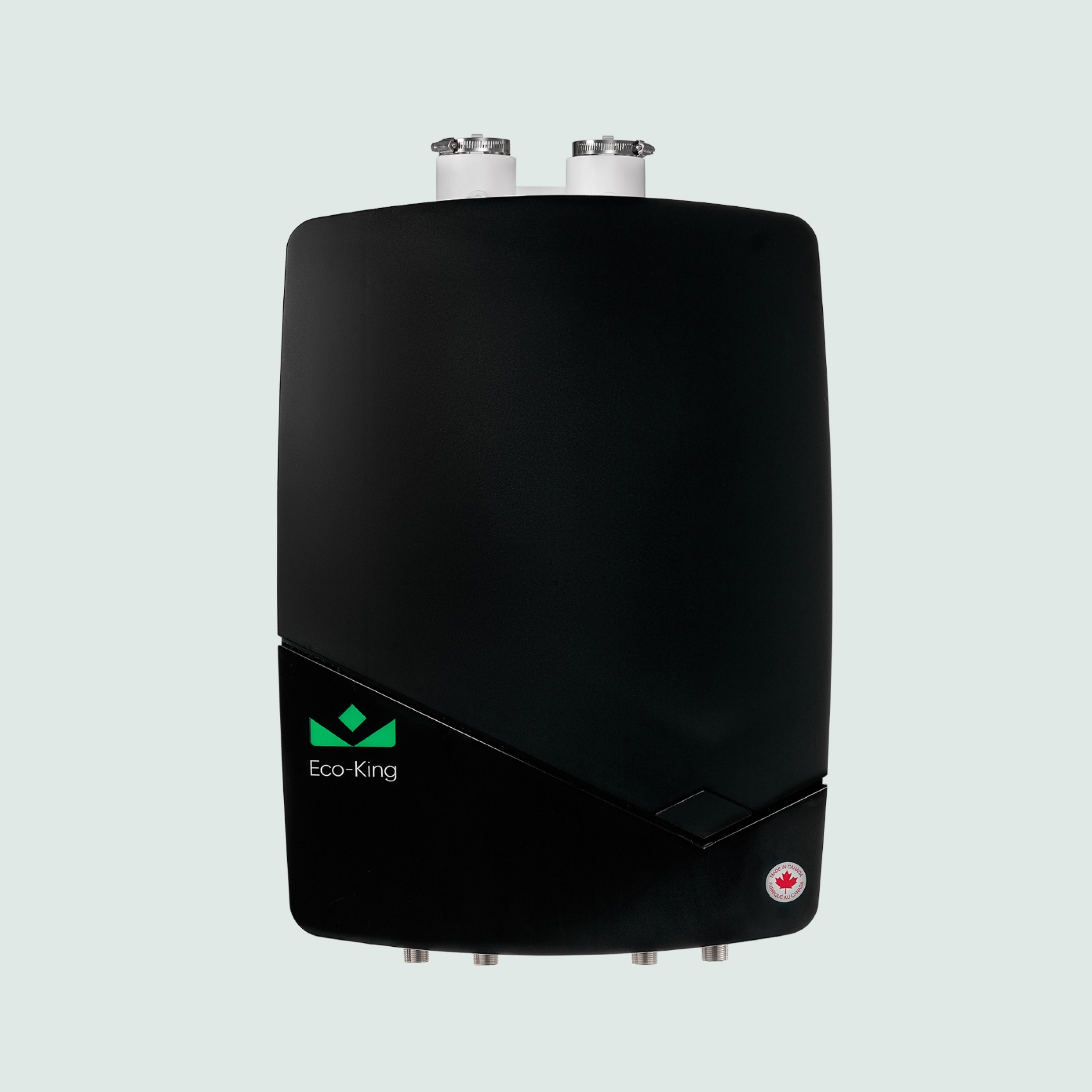

Eco-King Supreme H Series

34 reviews
95% AFUE Wall-hung NRCan

The wall-hung condensing boiler that made Eco-King a fixture of Canadian retrofits and new builds: 95% AFUE, proven in the field since 2009, and sharing one control logic with the whole family.

Efficiency 95% AFUE
Sizes H110 · H140 · H200
Mounting Wall-hung, compact footprint
Fuel Natural gas, field-convertible to propane
Pricing
Contact one of our authorized distributors near you for pricing.
Contact Us for Pricing Find a Distributor

Register online to activate warranty

Overview

Proven Canadian heat.One smart control.

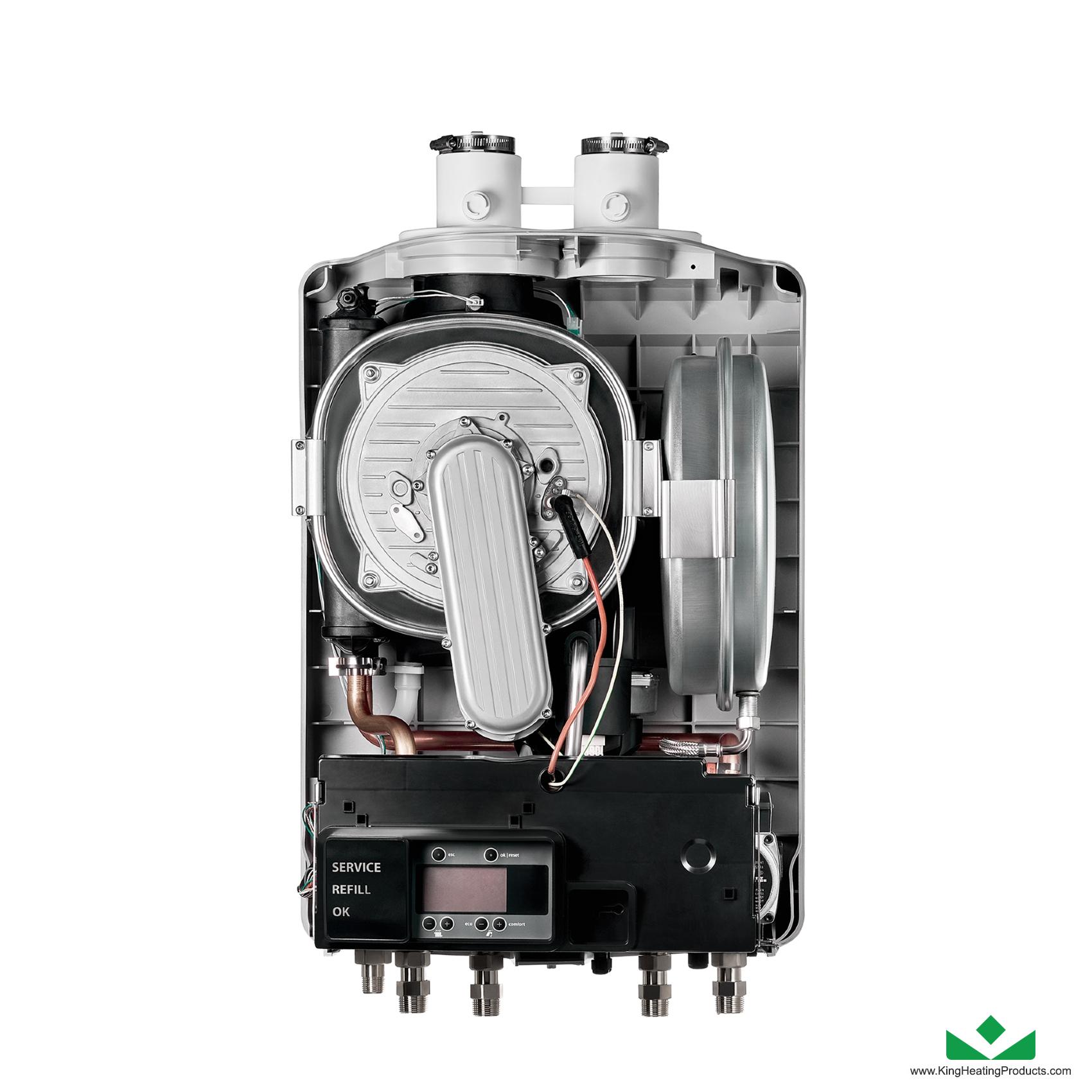

The Supreme H heats radiators, in-floor loops, baseboards and fan coils with continuously monitored combustion and a stainless steel heat exchanger. Its control interface is shared across the entire Eco-King family, so installers learn it once.

✓Stainless steel heat exchanger built for Canadian water
✓Pairs with Eco-King stainless indirect tanks for hot water
✓Continuous electronic combustion monitoring

The Eco-King Supreme boiler is now made in Canada! All of our boilers are 95% AFUE rated and Energy Star Natural Resources Canada approved. The Eco-King boilers are available in 3 different sizes: 100,000, 140,000 and 200,000 BTU.

The Eco-King is European engineered in the Netherlands & manufactured in Canada. Our Combi (C Model) provides instant on-demand hot water with hydronic heating. The operation of the Eco-King is extremely quiet, including a compact design for location purposes.

Grants & Rebates

This product qualifies for a $1,000 FortisBC rebate. Click here for details.

Models & Sizes Available

Model Capacity (70°F) BTU
H100 3.4 gallons per minute 16,000 - 19,000 BTU/hr
H140 4.2 gallons per minute 19,800 - 135,000 BTU/hr
H200 6.6 gallons per minute 26,900 - 185,000 BTU/hr
Eco-King Supreme boiler is revised for 2024Eco-King Supreme H Series

Specifications

Efficiency 95% AFUE
Sizes H110 · H140 · H200
Mounting Wall-hung, compact footprint
Fuel Natural gas, field-convertible to propane
Venting (C)PVC, PP or stainless · runs up to 200 ft
Application Radiators · in-floor · baseboard · fan coil
Controls Shared Eco-King control logic · outdoor reset ready
Certification NRCan approved · CSA · ASME (for USA models)
Detailed I/O Ratings See spec sheet in the Downloads hub

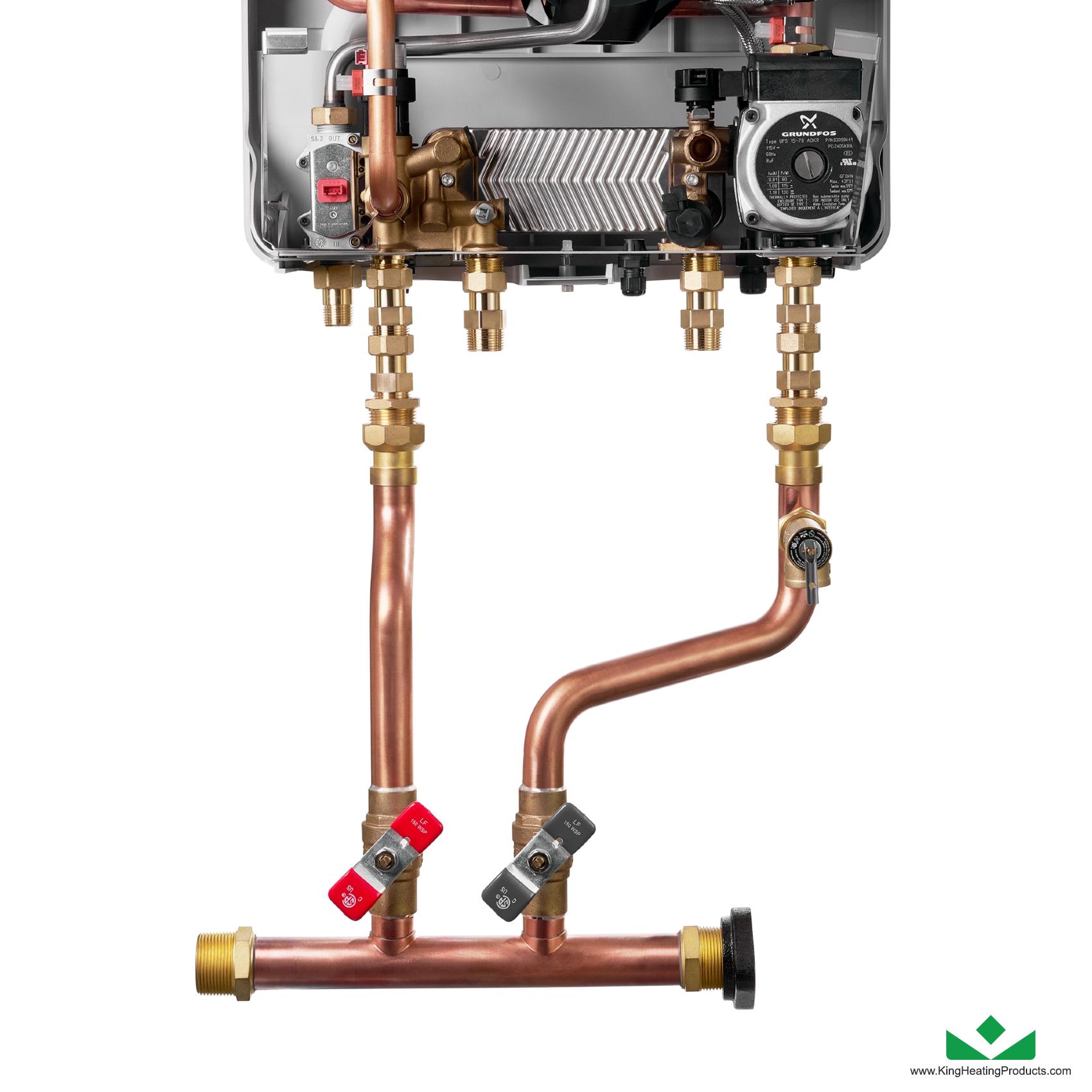

Water connections 3/4" MNPT
Gas connection 1/4" MNPT
Dimensions (HxWxD) 27" x 19" x 16"
Weight 68 | 75 | 82 lbs
Maximum heat supply 185°F / 85° C
Intake / Exhaust 3" PP (80mm) · 2" possible with included adapters
Modulation 6:1 Fully Modulating
Complete the system Zone controls · Wi-Fi module · app monitoring
Documents

Warranty & Manuals

Limited Lifetime Warranty

Components Covered Residential Installations Commercial Installations
Heat Exchanger 0-5 Years – 100%
6-10 Years – 50%
11 + Years – 25%
0-5 Years – 100%
6-10 Years – 50%
All other components 5 Years 2 Years
Components required for recommended maintenance Not covered: Ignitors, refractory insulation, combustion chamber gaskets Not Covered Ignitors, refractory insulation, combustion chamber gaskets
