Eco-King Ultimate Commercial Volume Water Heater

1 reviews
96% efficient Cascade to 16 299 / 399 / 499k BTU

96% efficient commercial power in three sizes (299, 399, 499k BTU), cascading up to 16 units with racking systems and low-loss headers, and speaking BACnet/Modbus to your BMS natively.

Efficiency 96%
Outputs 299,000 to 499,000 BTU/h per unit
Cascading Up to 16 units, serviceable one at a time
Integration BACnet / Modbus native
Pricing
Contact one of our authorized distributors near you for pricing.
Contact Us for Pricing Find a Distributor

Register online to activate warranty

Spec'ing a project? Racking and cascade kits are catalogue items, and our team supports BMS integration: talk to us.

Overview

Redundancy by design.Serviceable one at a time.

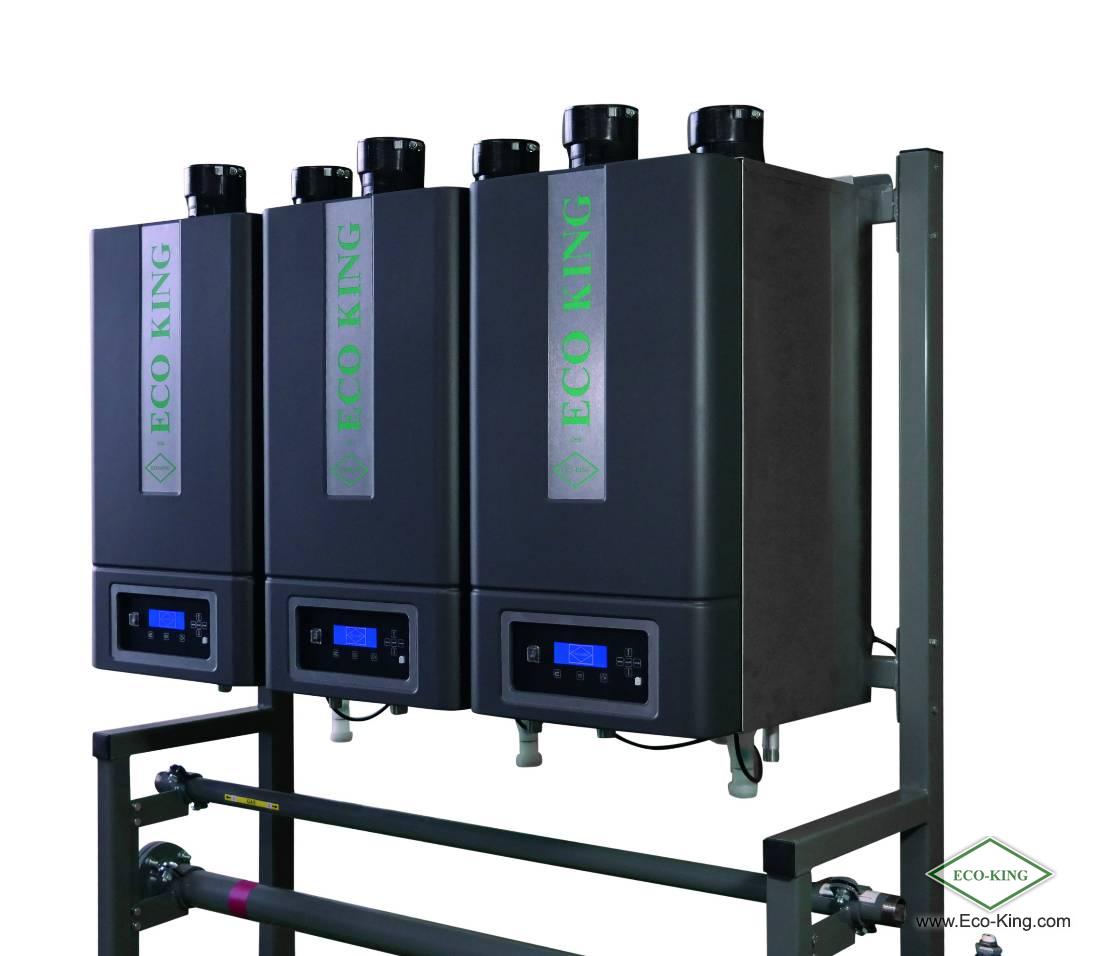

Cascaded Ultimates share the load, rotate lead-lag duty and keep the producing hot water while any single unit is serviced. Racking systems and low-loss headers make the mechanical room layout a catalogue exercise, not a custom fabrication.

✓Cascade up to 16 units with lead-lag rotation
✓Racking systems and low-loss headers off the shelf
✓Native BACnet / Modbus for BMS integration

High efficient commercial wall-hung water heaters. Ability to produce large quantities of domestic hot water in a volume on demand water heater.

  • Up to 96% high efficient wall hung condensing boilers with European state of the art technology
  • 3 sizes and two models. Boiler and Volume water heater in 300, 400 and 500 MBH
  • ASME Stainless steel heat exchanger
  • Cascade up to 16 boilers in a row
  • Racking systems available from 2 to 4 units on one rack with Low Loss Header. Plug & Play
  • 3 in 1 venting adapters included. Vent directly off the top with (C)PVC, PP or Stainless Steel
  • Wi-Fi with mobile app capability (extra accessory)
  • Outdoor sensor, Wi-Fi, Bacnet/Modbus connections on all boilers
  • Multiple pump connections with two temperature capability: DHW tank and Heating
Grants & Rebates

This product qualifies for a $1,000 FortisBC rebate. Click here for details.

Models & Sizes Available

Model BTU
EK 299 CHB 295,000 BTU/Hr
EK 299 DHW 399,000 BTU/Hr
EK 499 DHW 490,000 BTU/Hr
Eco King Products OverviewEco-King Ultimate Commercial Volume Water Heater

Specifications

Efficiency 96%
Outputs 299,000 to 499,000 BTU/h per unit
Cascading Up to 16 units, serviceable one at a time
Integration BACnet / Modbus native
Application Multi-unit residential · commercial · institutional
Certification NRCan approved · CSA
Detailed I/O Ratings See spec sheet in the Downloads hub
Water connections 1 1/2" NPT
Gas connection 1"
Dimensions (HxWxD) 33" x 17" x 21"
Weight 174 lbs / 79 kgs
Intake / Exhaust 100mm / 4" and 6" for 499 model
Documents

Warranty & Manuals

Limited Lifetime Warranty

Components Covered Residential Installations Commercial Installations
Heat Exchanger 0-5 Years – 100%
6-10 Years – 50%
11 + Years – 25%
0-5 Years – 100%
6-10 Years – 50%
All other components 5 Years 2 Years
Components required for recommended maintenance Not covered: Ignitors, refractory insulation, combustion chamber gaskets Not Covered Ignitors, refractory insulation, combustion chamber gaskets

Limited Lifetime Warranty

Register online to activate full coverage. Two minutes per unit.

Register your unit
